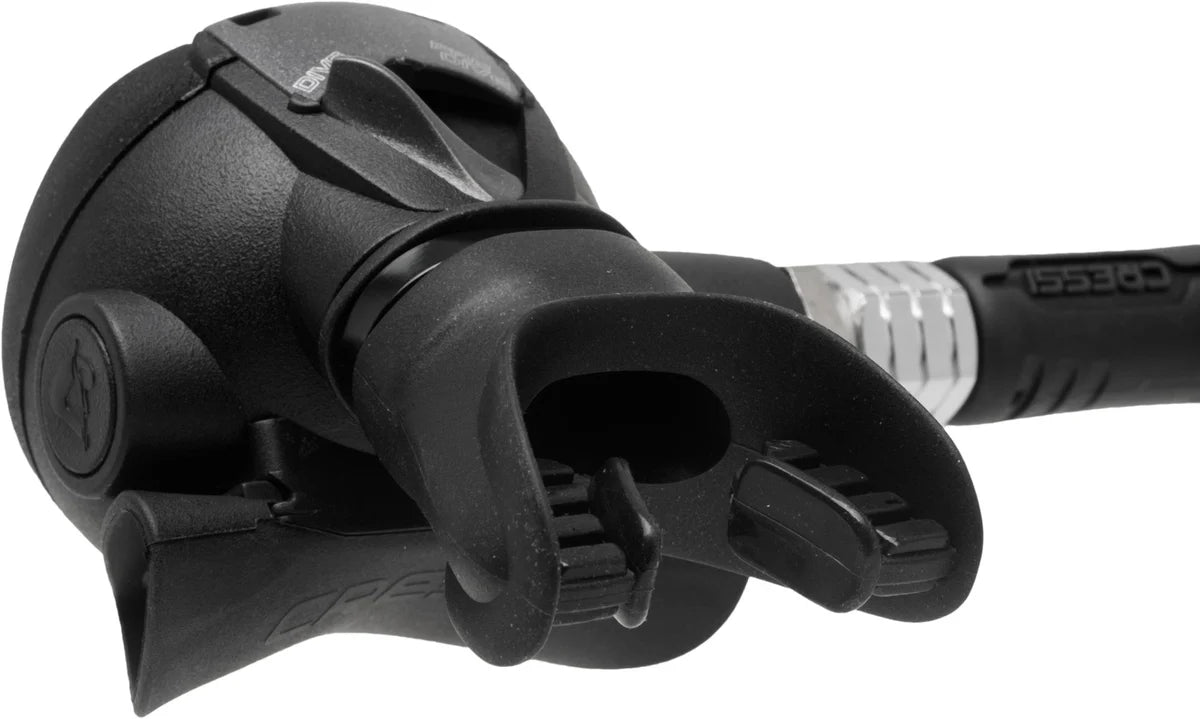

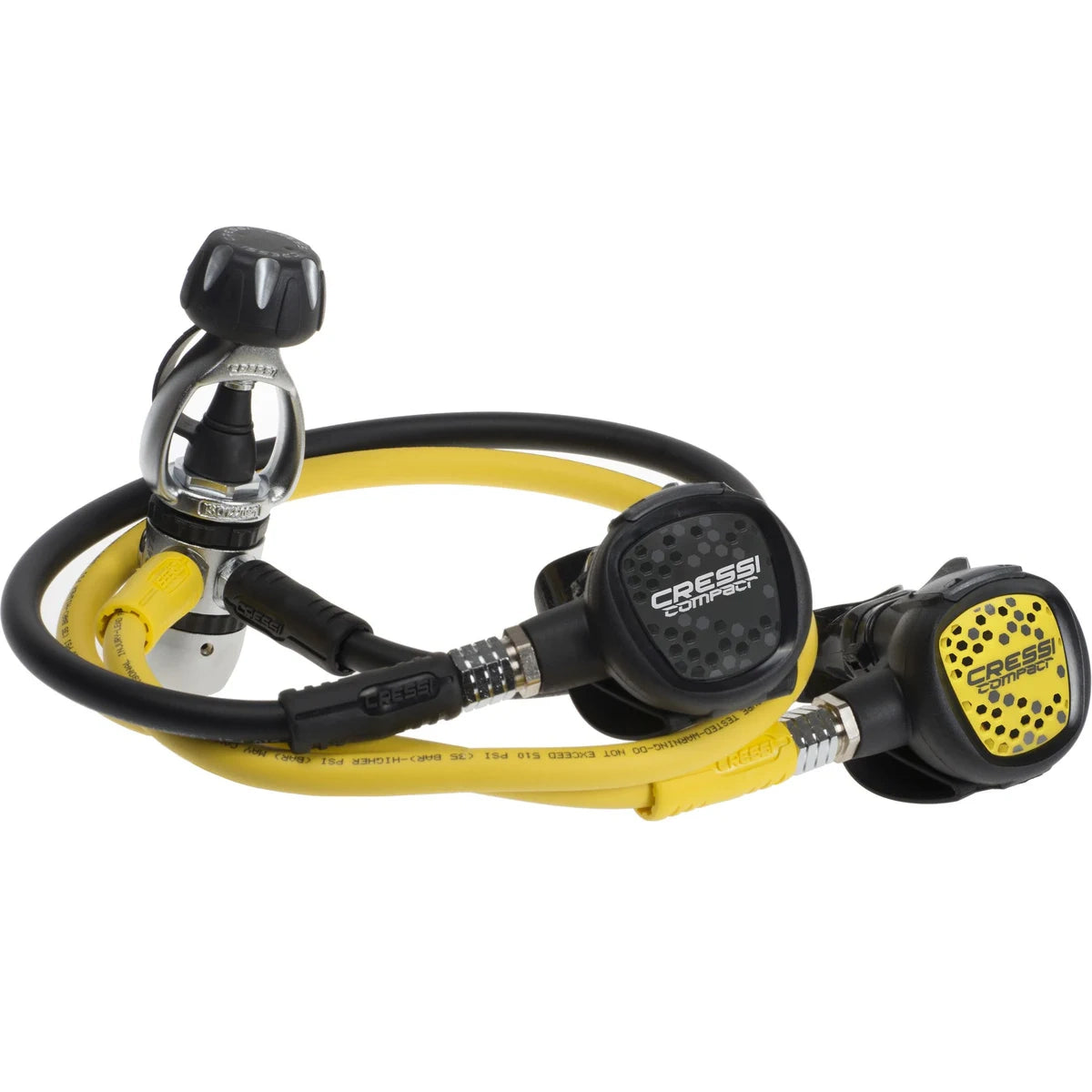

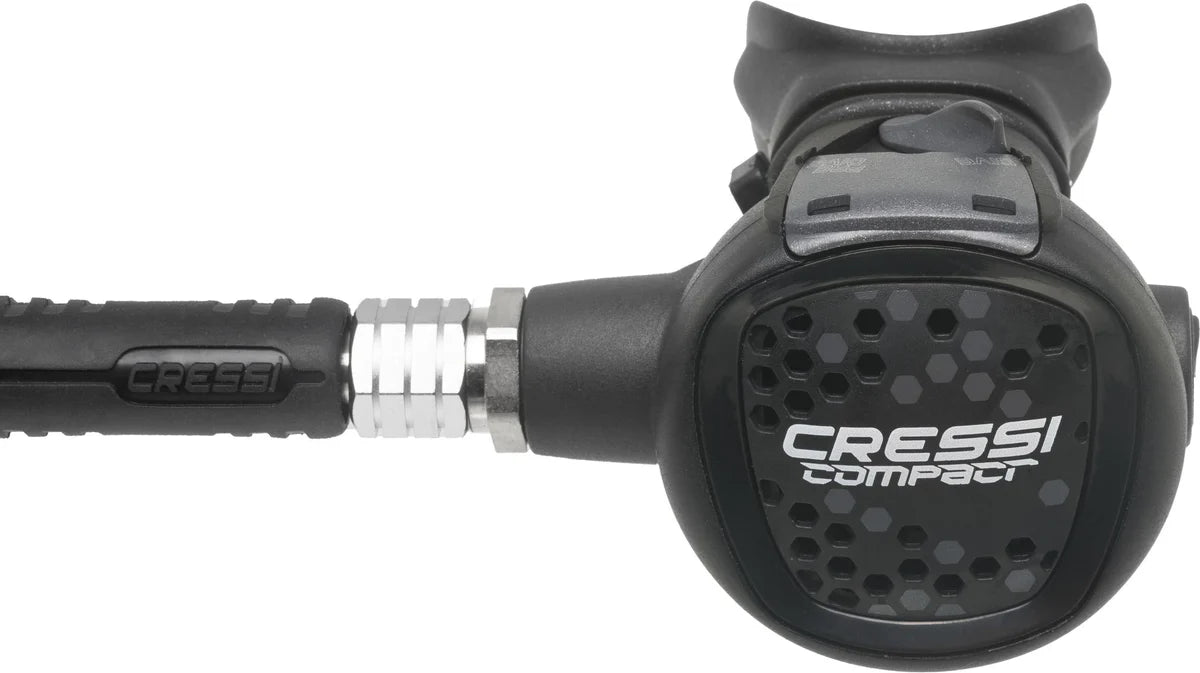

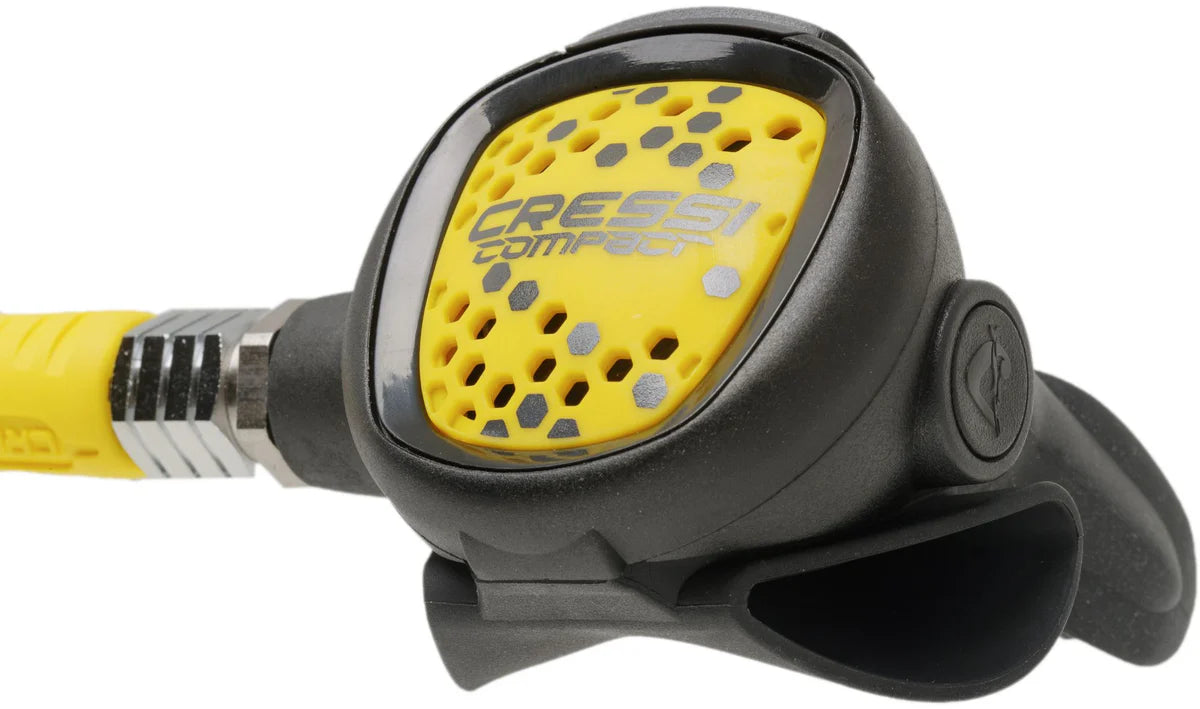

TECHNICAL FEATURES 1ST STAGE • Unbalanced piston • 1 outlet HD 7/16 UNF • 4 outlet MP 3/8 UNF • Operating pressure: 300 bar (4350 psi) DIN version, 232 bar (3365 psi) yoke version • Calibration pressure: 9.5–10 bar • Brass housing, chemically nickel-plated • High-performance cone filter, chemically nickel-plated • Durable piston made of AISI 316 • Simple external direct IP setting system • Stainless steel spring • Flow rate: 2100 l/min • Weight Yoke version: 635 g • Weight DIN version: 495 g TECHNICAL FEATURES 2ND STAGE • Downstream system • Adjustable Venturi effect • Patented anti-friction lever • Large vent button • Scratch-resistant surface • Bayonet lock with safety lock • Removable exhaust T-piece without tools • Weight without tube: 135 g Coated hose, extremely light and flexible Weight: 153 g Certification EN250/2014 A > 10 °C
