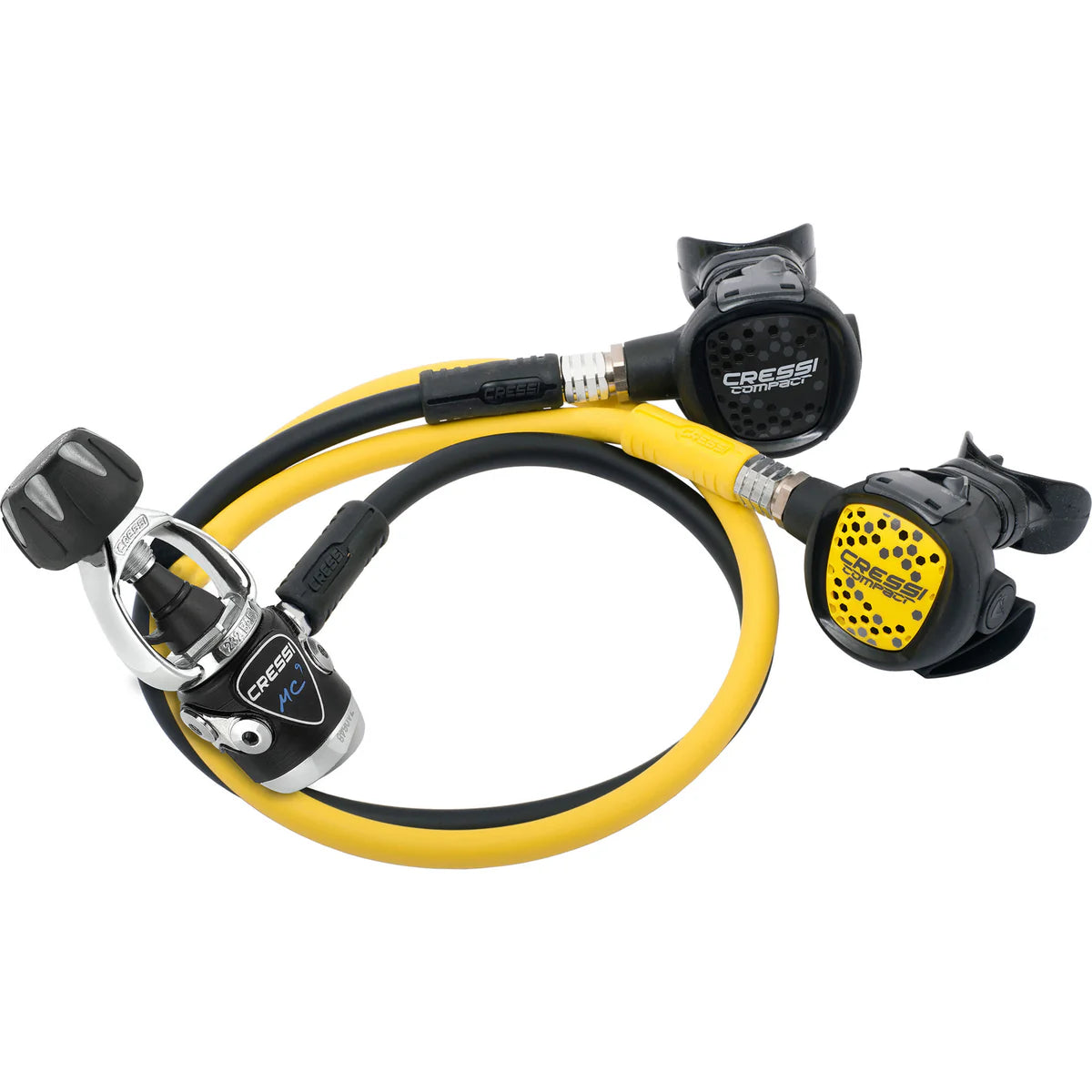

Cressi MC9 compact reductor set

Pressure gauge and inflator hose not included!

TECHNICAL FEATURES 1ST STAGE
• Diaphragm balanced (sealing chamber for MC9SC)
• 2 outlets HD 7/16 UNF
• 4 outlets MP 3/8 UNF
• Operating pressure: 300 bar (4350 psi) DIN version,
232 bar (3365 psi) yoke version
• Calibration pressure: 10 bar
• Brass housing, chemically nickel-plated
• High-performance cone filter, chemically nickel-plated
• Removable nozzle made of AISI 316
• Hyperbalancing
• Pressure drop pneumatic spring
• Adjustment spring: stainless steel with micro-opening treatment
• Cressi PressureSync system for a more consistent
Inspiratory pressure
• Elastomer protection
• Flow rate: 4500 l/min
• Weight Yoke version: 590 g
• Weight DIN version: 450 g

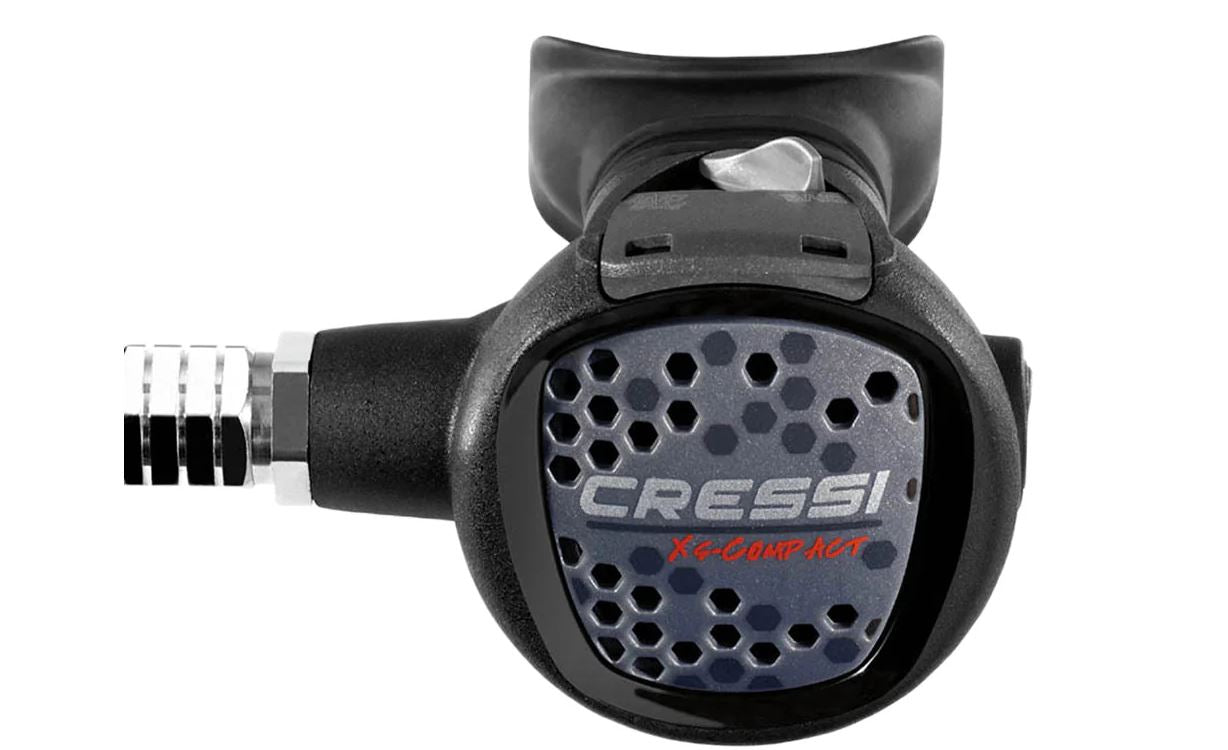

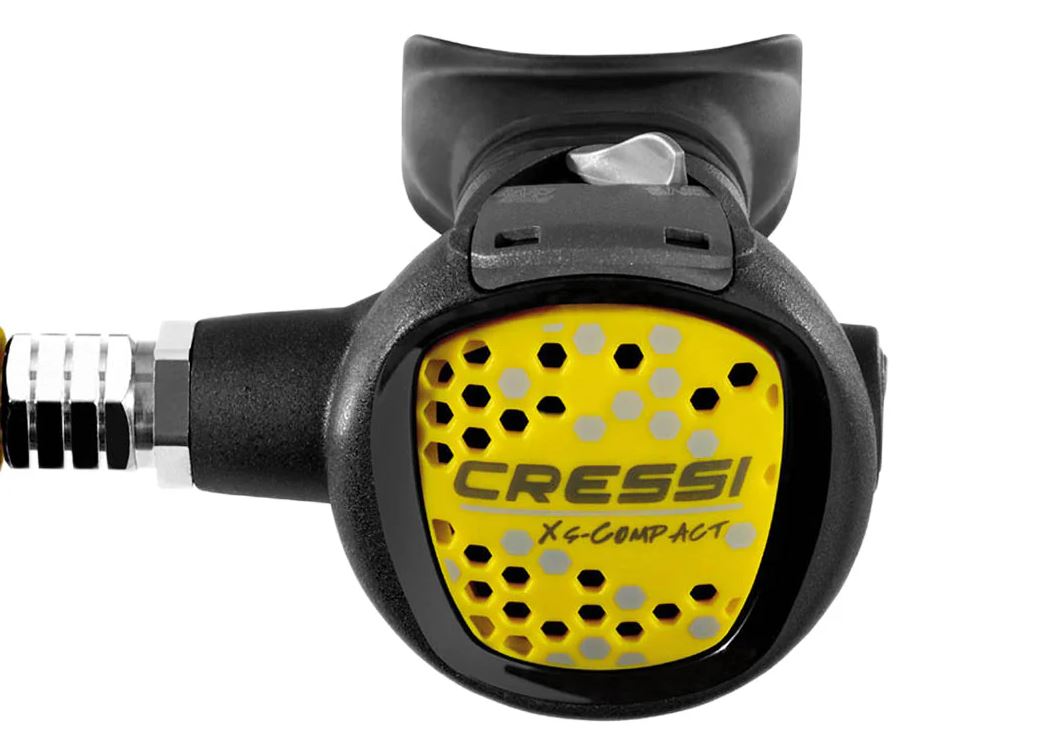

TECHNICAL FEATURES 2ND STAGE
• Downstream system
• Adjustable Venturi effect
• Patented anti-friction lever
• Large vent button
• Scratch-resistant surface
• Bayonet lock with safety lock
• Removable exhaust air T-piece without tools
• Weight without tube: 135 g
Coated hose, extremely light and flexible
Weight: 153 g
Certification EN250/2014 A > 10 °C
