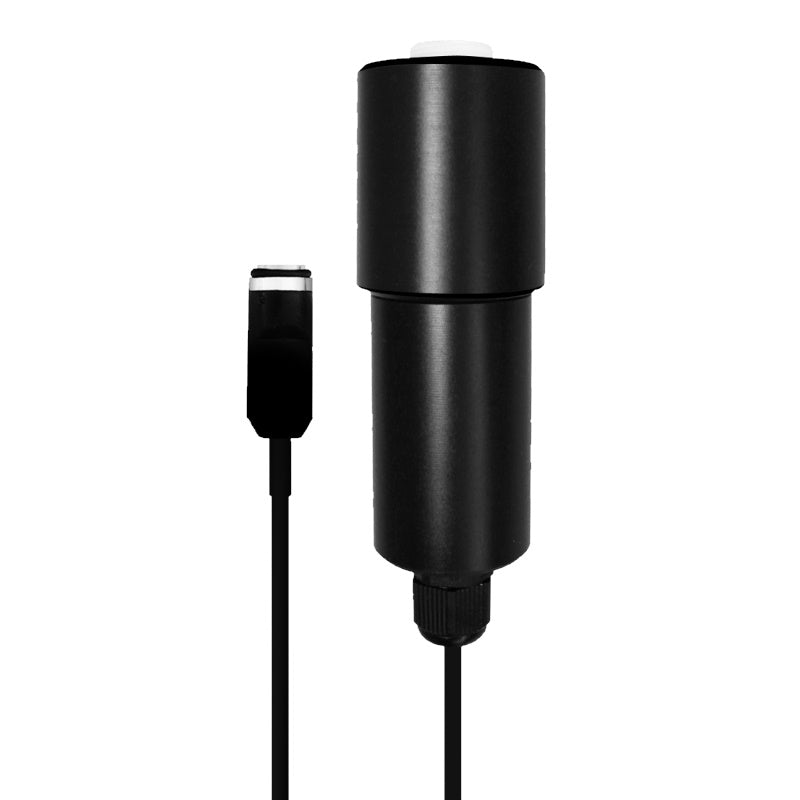

Ratio Oxygen Analyzer

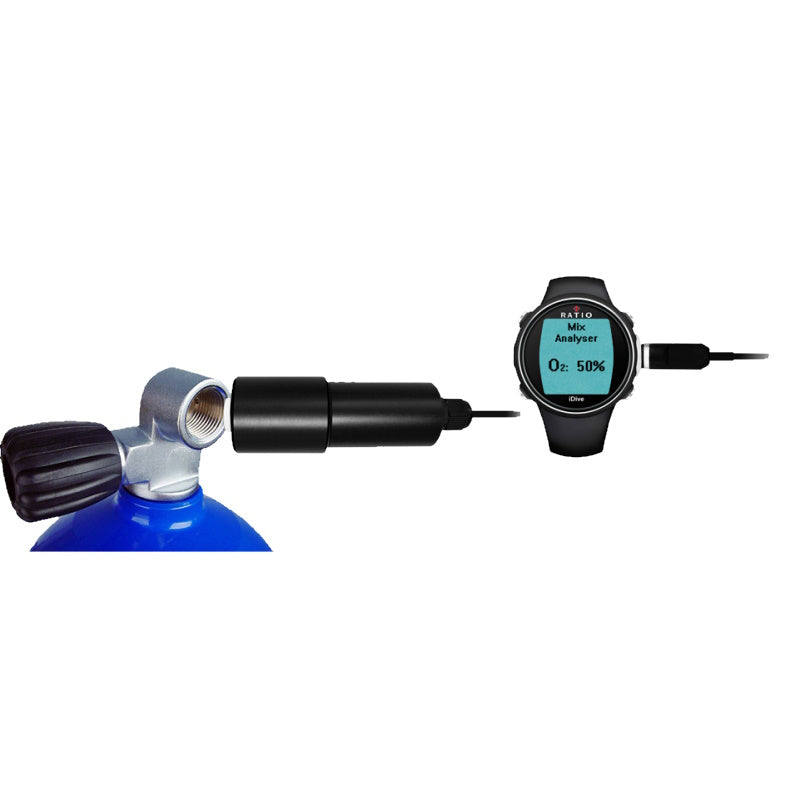

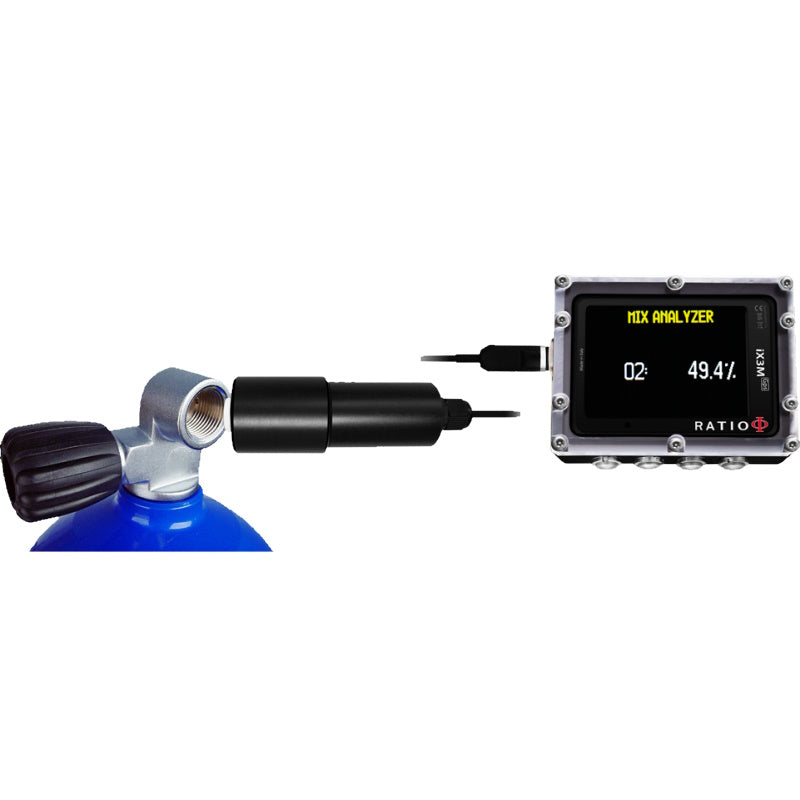

Transform your iX3M or iDive dive computer into a professional, fully automatic oxygen analyzer.

Sensor: Electrochemical (Vandagraph R-22VAN or Analytical Industries PSR-11-39-MD);

Range: 0.1 - 100%,
Resolution: 0.1%
Accuracy: +/- 1%

Operating temperature: 0 -> +40°C
Storage temperature: 0 -> +50°C
Sensor lifetime: approximately 36 months (at 25°, 50% RH, sea level, with properly closed protective cover)

User-replaceable sensor
Sensor update speed: approximately 10 seconds

User-replaceable battery
Battery type: 1.5V type N, LR1, MN9100,AM5, 4001 (standard)

Automatic sensor calibration: Yes
Automatic sensor validation: Yes

Scope of delivery:

Oxygen analyzer
1 sensor Vandagraph R-22VAN
1 battery 1.5V type N, LR1, MN9100,AM5, 4001 (standard)
1 sensor protection cover

Video guide:

How to Analyze a Nitrox tank and set the mix on iDive COLOR - Ratio Computers

How to Analyze a Nitrox tank on iX3M - Ratio Computers
